Technical Specifications – R740
|
Features |

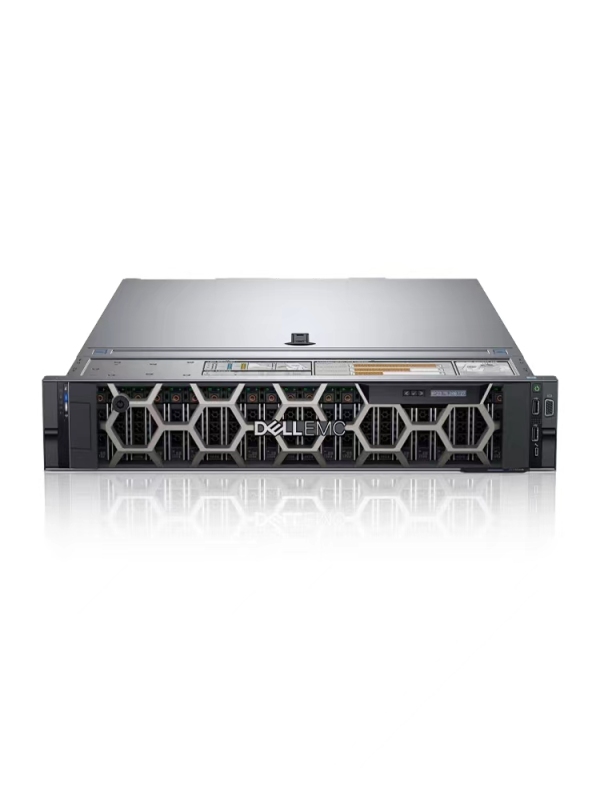

PowerEdge R740 |
|
CPU |
Up to two 2nd Generation Intel® Xeon® Scalable processors with up to 28 cores per processor Support for up to 2 x 205W procs |
|
Memory |
Up to 24 x DDR4 RDIMM, LRDIMM, Optane Persistent Memory 100 (Apache Pass): Yes NVDIMM: Yes DIMM Speed: Up to 2933 MT/s |
|
Storage |
Up to 12 x 3.5” SAS/SATA HDD Up to 24 x 2.5” SAS/SATA HDD or SSD Up to 24 x NVMe Internal: IDSDM and BOSS (2 x M.2) for boot Bandwidth: 12Gb/6Gb SAS |
|
Storage Controller |
HW RAID: PERC 9 / PERC 10; Dual PERC option Chipset SATA/SW RAID: Yes |
|
Network |
1 NDC |
|
PCIe slots |
Up to 8 x PCIe Slots Gen3 (4 x16) |
|
GPU |
3 x 300W (DW) or 6 x 75W (SW) |
|
Integrated Ports |
Front: 2 x USB 2.0, 1 managed (micro-USB) + upsell: 1 x USB 3.0 Rear: 2 x USB 3.0 |
|
System Management |
iDRAC9 Enterprise, Datacenter license options; OpenManage Enterprise and Plugins (Power Manager, SupportAssist, and Update Manager). iDRAC Direct, Quick Sync 2.0 |
|
High Availability |
Hot Plug redundant drives, 2 Tiered Fans, PSU, IDSDM, BOSS (2 x Internal M.2) |
|
Power Supplies |
495W, 750W, 1100W, 1600W, 2000W, 2400W |
|
Dimensions |
H x W x D: 2U x 434mm x 716mm |
|
Form Factor |
2U Rack |
